Modern Heavy-Duty Wall-Rail Bracket (Satin Black)

Modern Heavy-Duty Wall-Rail Bracket (Satin Black)

$21.50

$28.50

Description

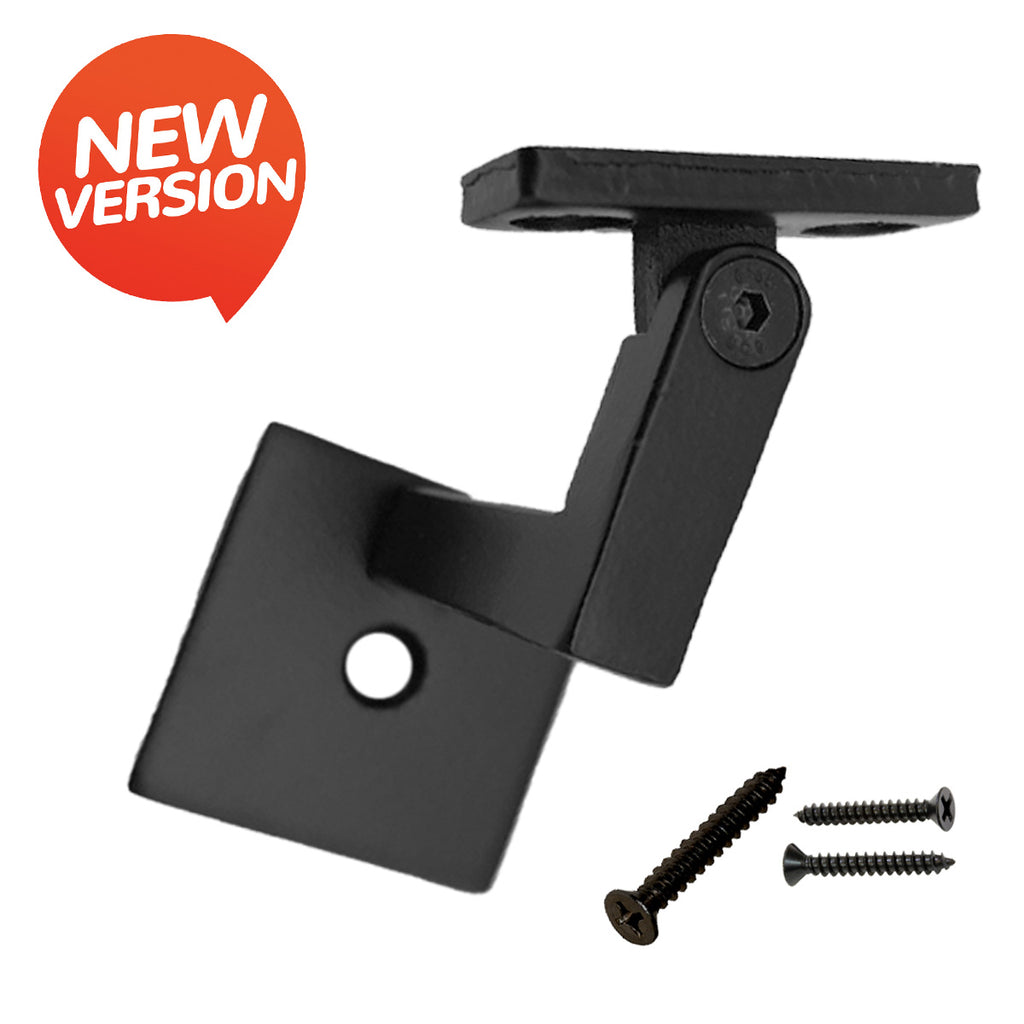

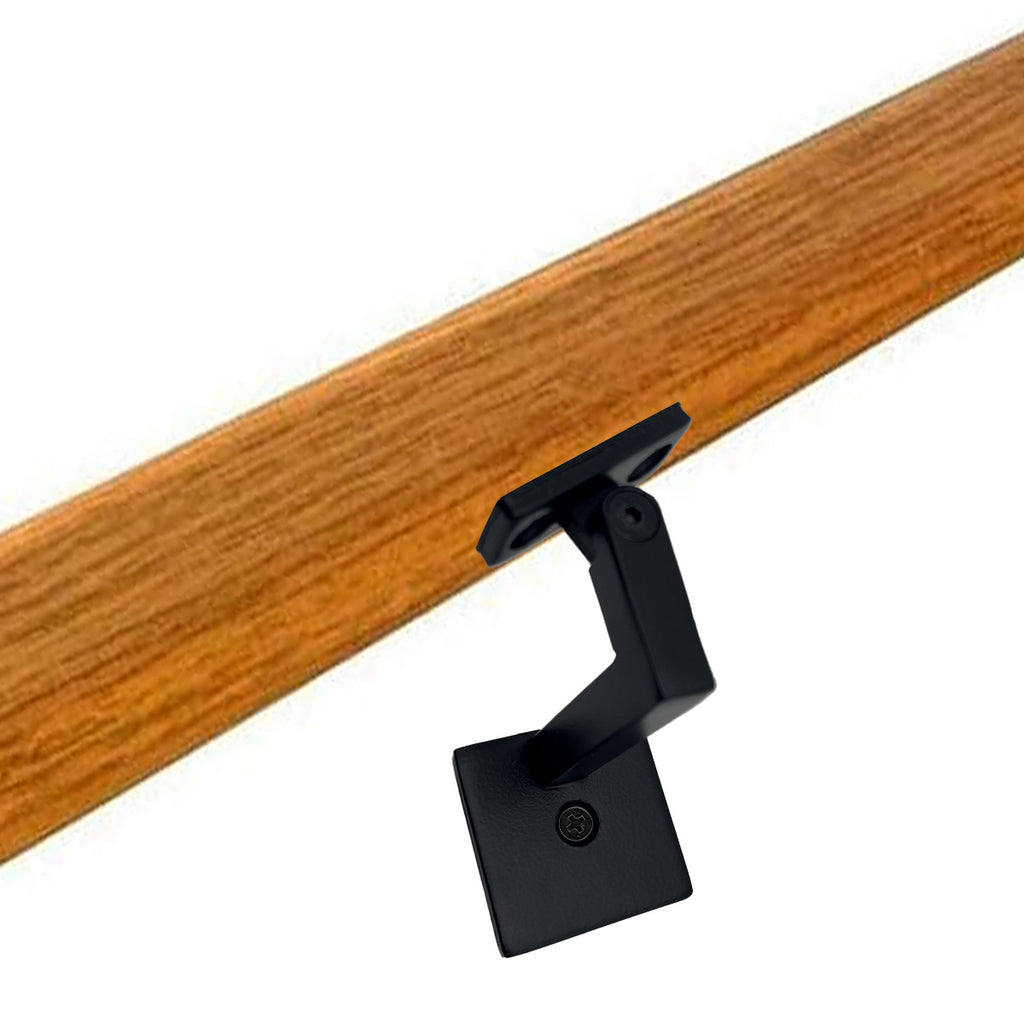

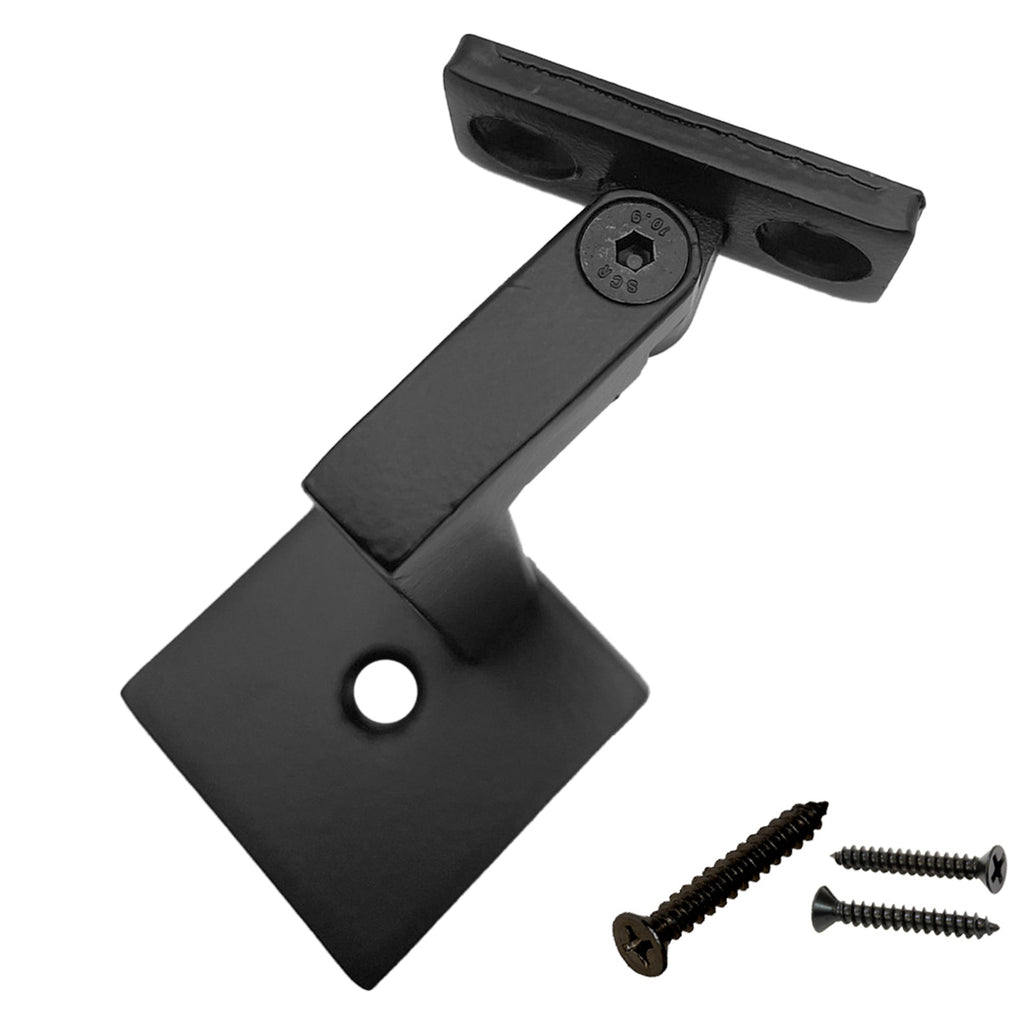

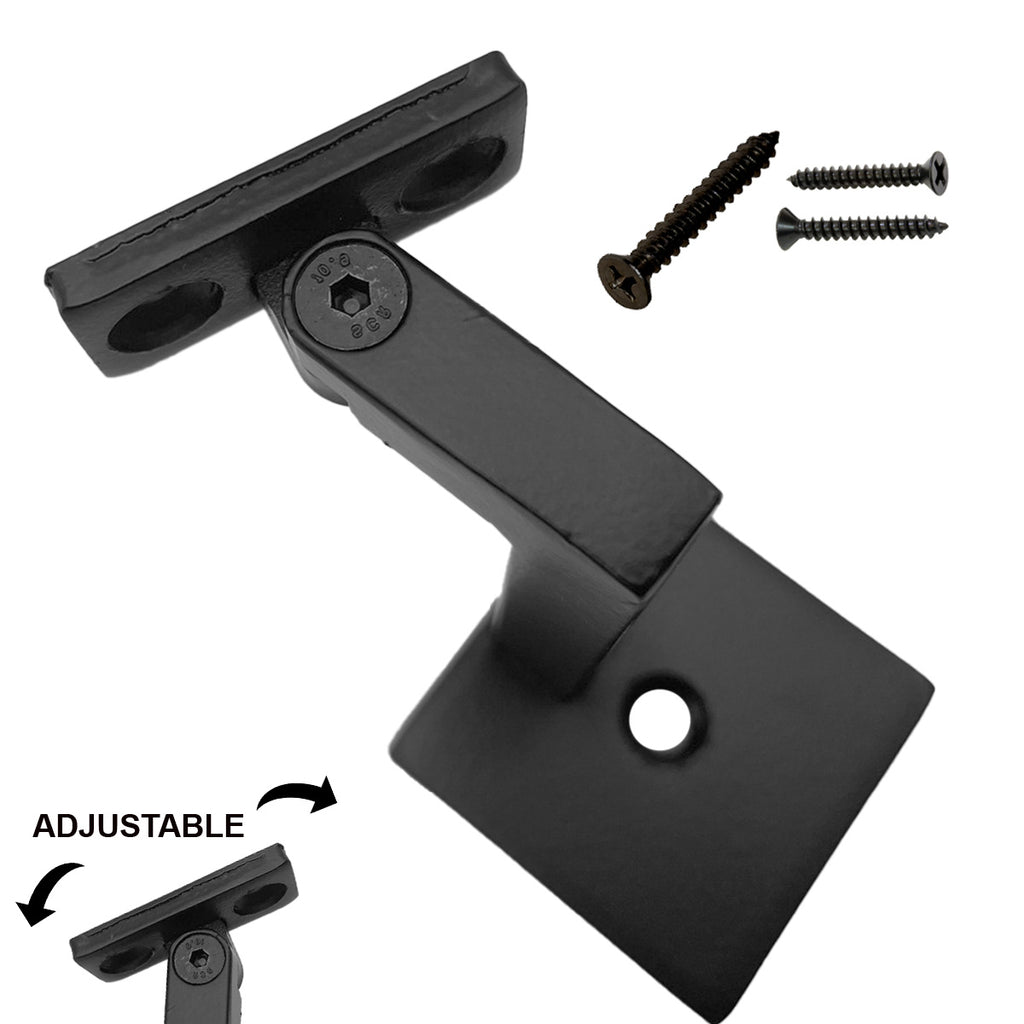

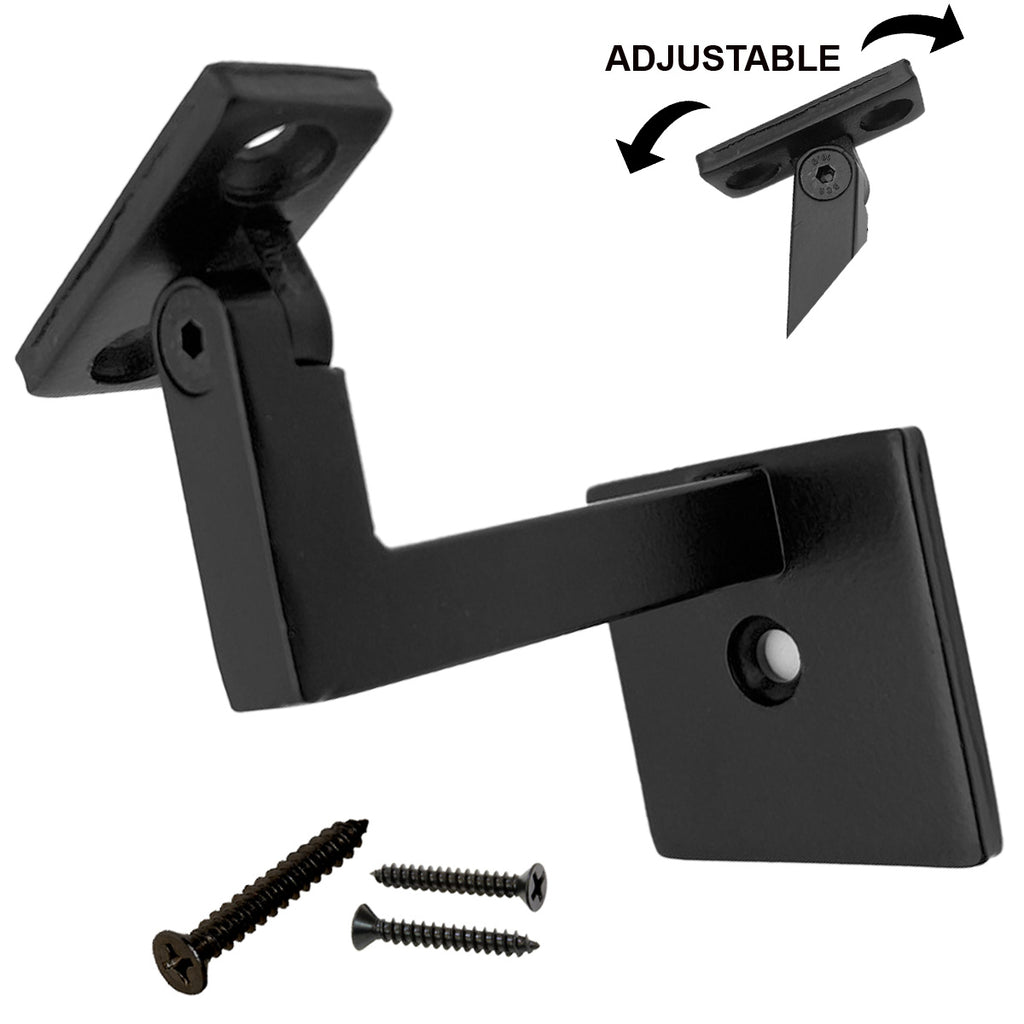

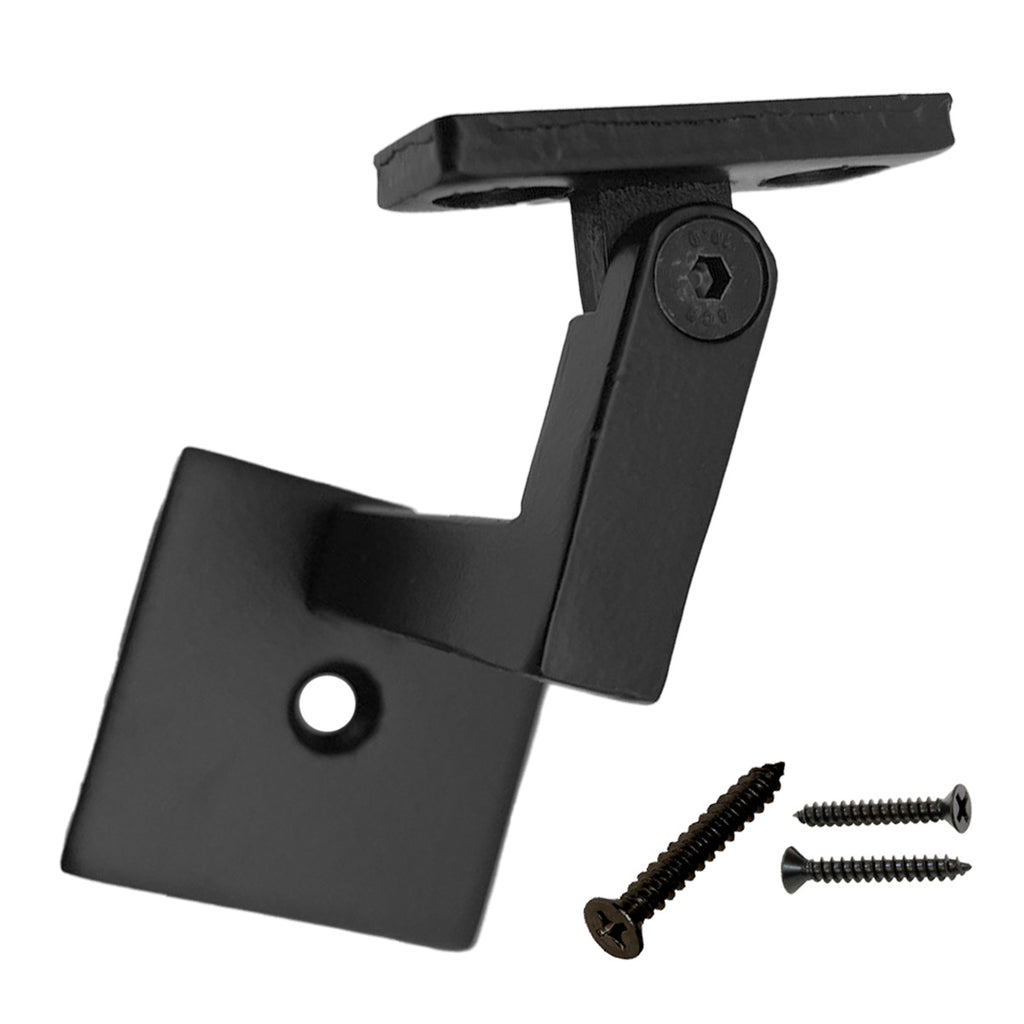

This Exclusive Contemporary Heavy Duty Adjustable Handrail Bracket (Satin Black) will attach to any wall or flat surface. The adjustable base allows railing to be placed in multiple angles. Installation is straightforward with the use of a drill, screws and hex head key. Fits any flat bottom railing.

  • Width: 3" from wall to center of rail
  • Height: 2-3/4" Arm Thickness: 1/2"
  • Mounting base: 2-3/8" x 1-1/2"
  • 1 Hexagonal socket set screw

With the correct installation of a handrail support, you can ensure that various aspects of a home are made safe and easier to use and also have a decorative touch.

DON'T LEAVE RAILING ENDS EXPOSED, BY CODE THEY NEED TO RETURN TO THE WALL.

Handrails need to meet the wall at each end. These "returns" alert people that the railing has ended. Returns also protect folks from bumping into a sharp edge of the rail.

** Always drill pilot holes first before driving in any bracket screws. Without a pilot hole, it’s possible that you could break/strip the screws with all the pressure of the wood squeezing onto the screw as you drive it in **

Note: Consult your local building code for specific requirements.

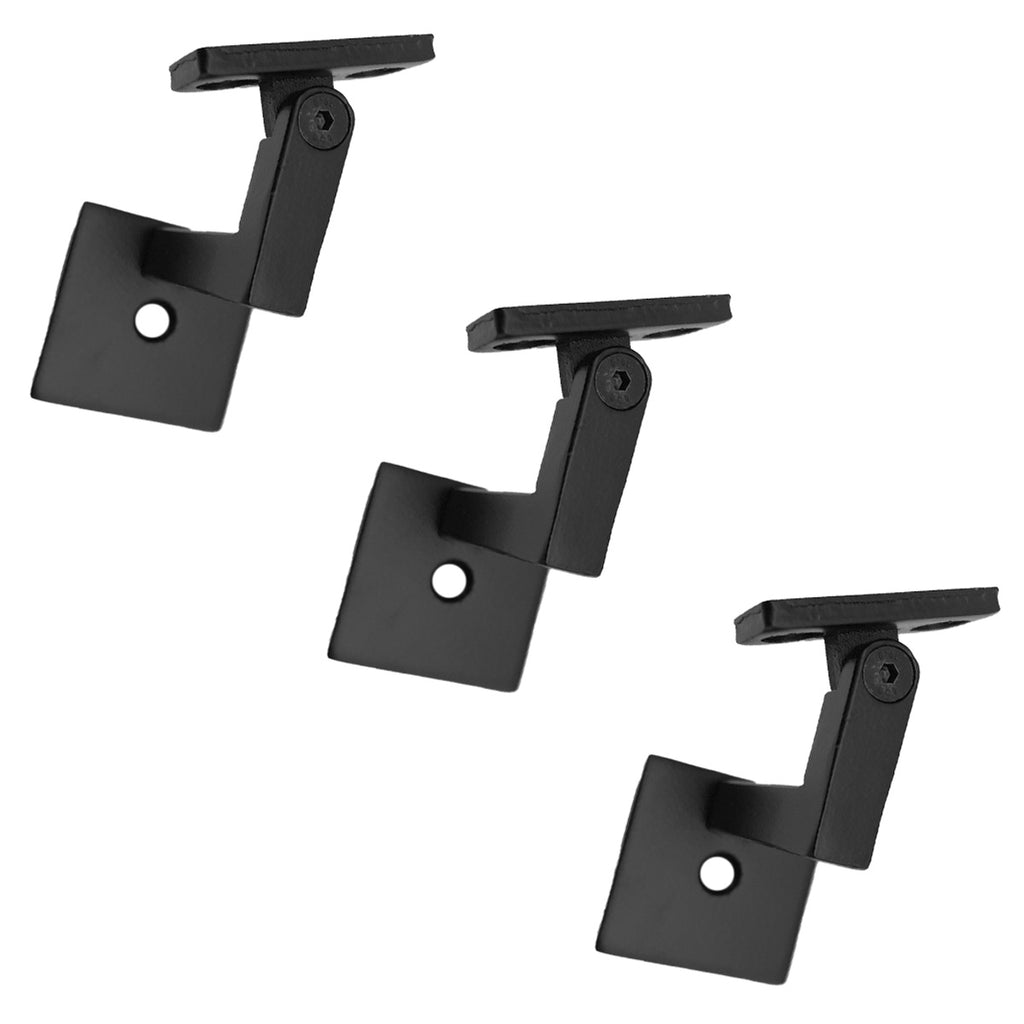

Wall rail brackets should be installed every 48” on center average. Use 3 brackets per each 8' section.
