Swagless Tensioner with Lag Screw Cable Terminal

Swagless Tensioner with Lag Screw Cable Terminal

$36.95

Description

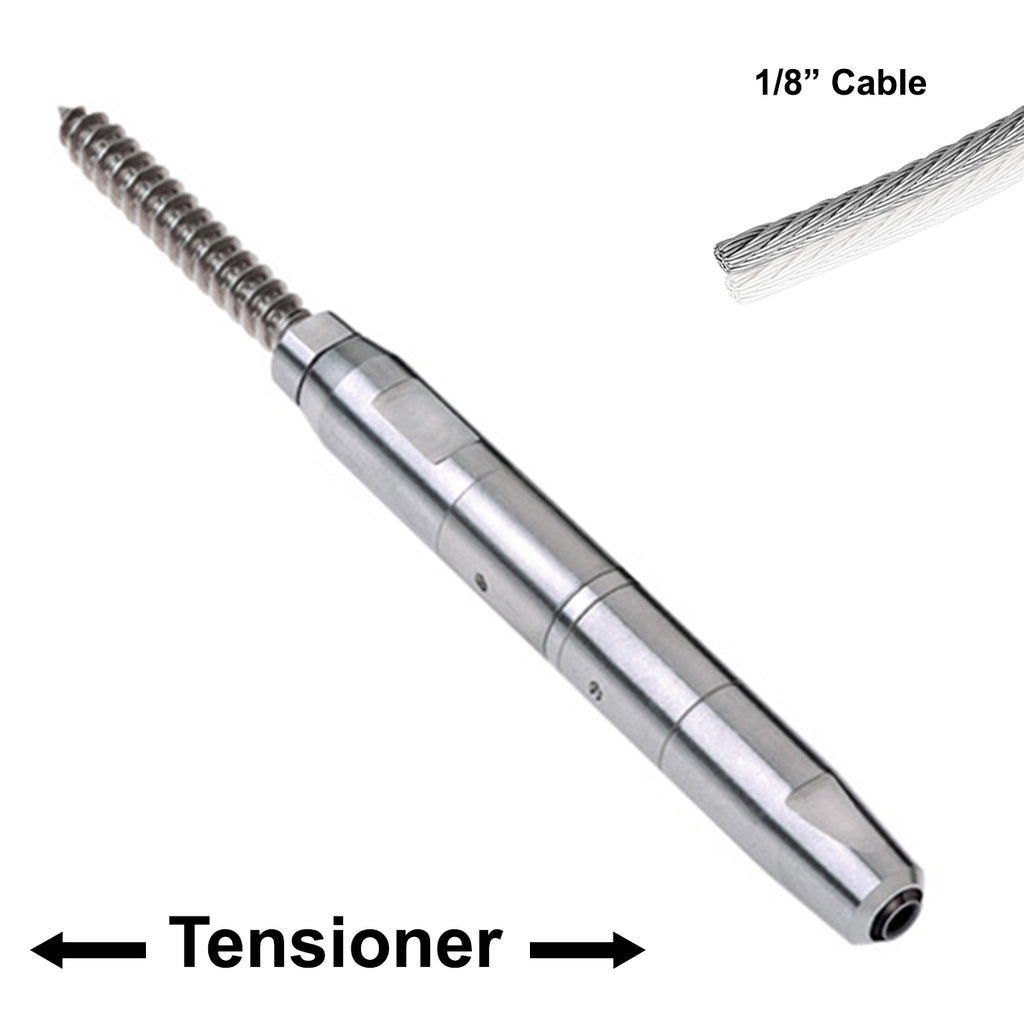

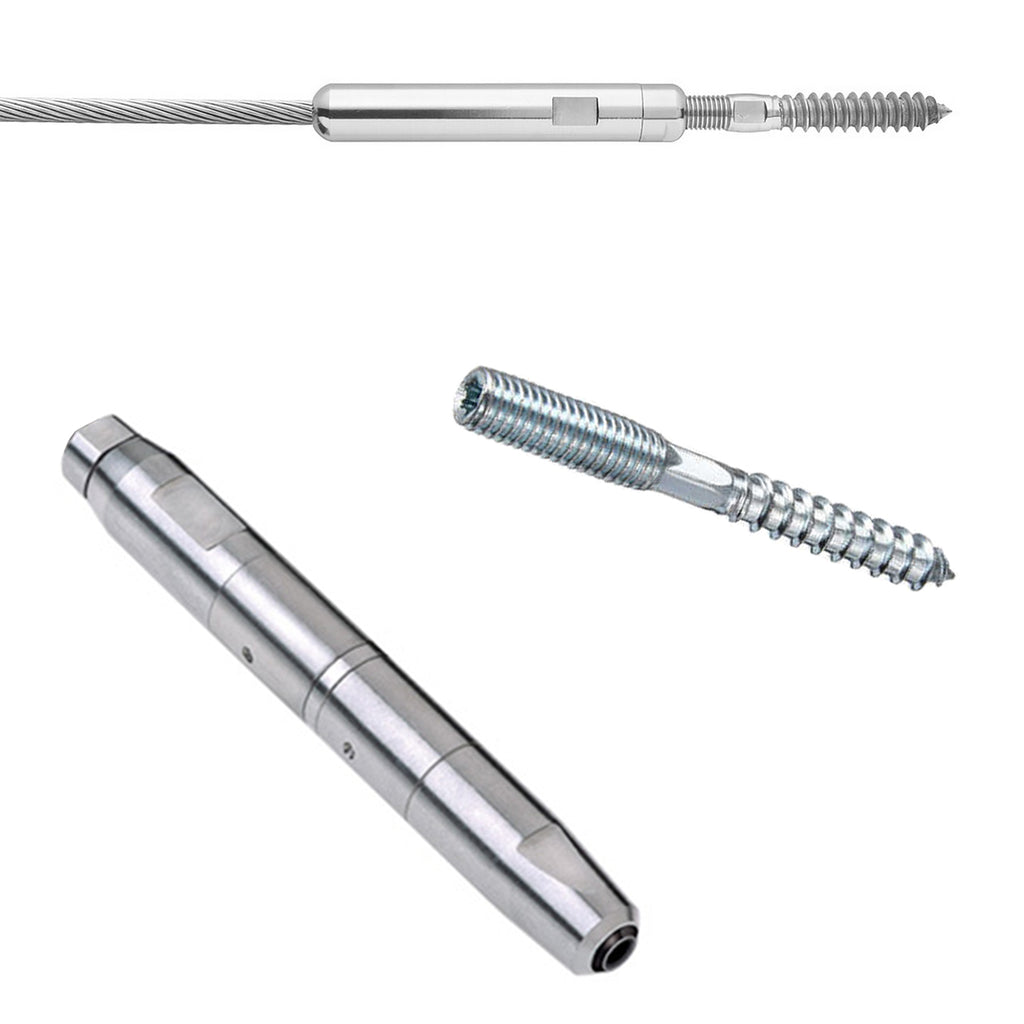

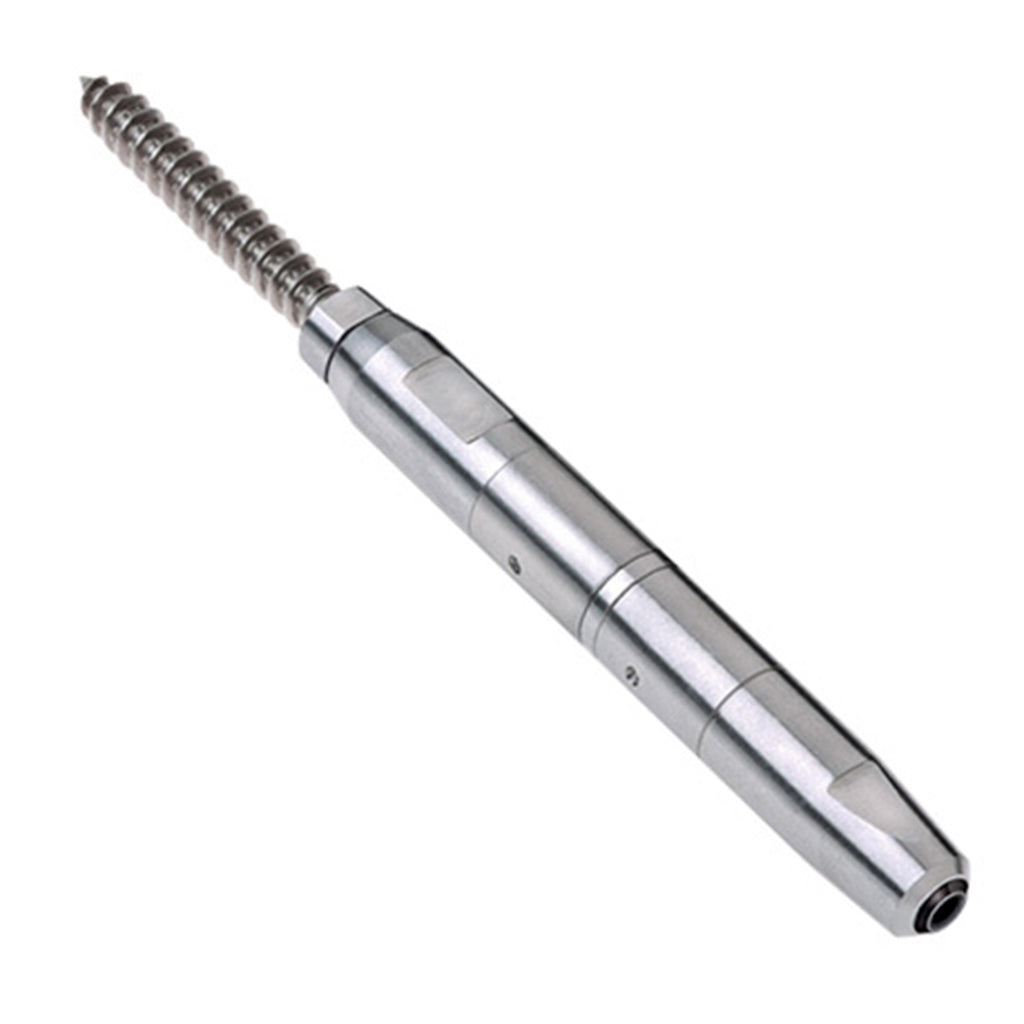

Our Stainless Steel Swagless Tensioner with Lag Screw provides the best tensioning for your cables, it's used for both short and long runs when strong tensioning ability is required. Consists of two components that fit together: the wood lag screw and the swivel tensioning body.

Tension is created by inserting and turning the swivel body into the lag screw thread while preventing the cable from turning. The wood lag screw is broached for an allen wrench on one end to make it easy to screw into the post. The cable attaches manually with no special tools required with our push-lock automatic-locking jaws system.

  • For use on level runs only
  • Made of 316 Marine Grade Stainless Steel

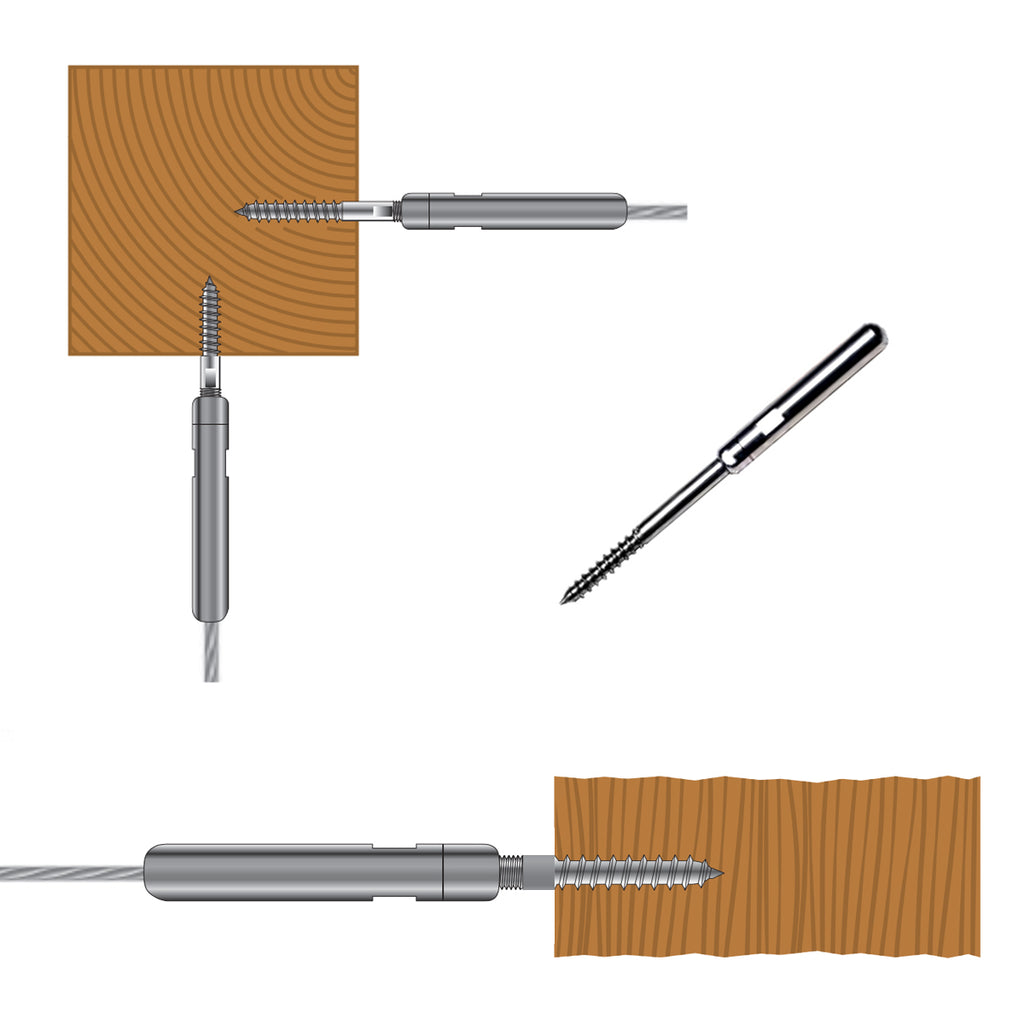

  • Attaches to the inside face of newel post
  • For use with 1/8" dia. Stainless Steel Cable ONLY

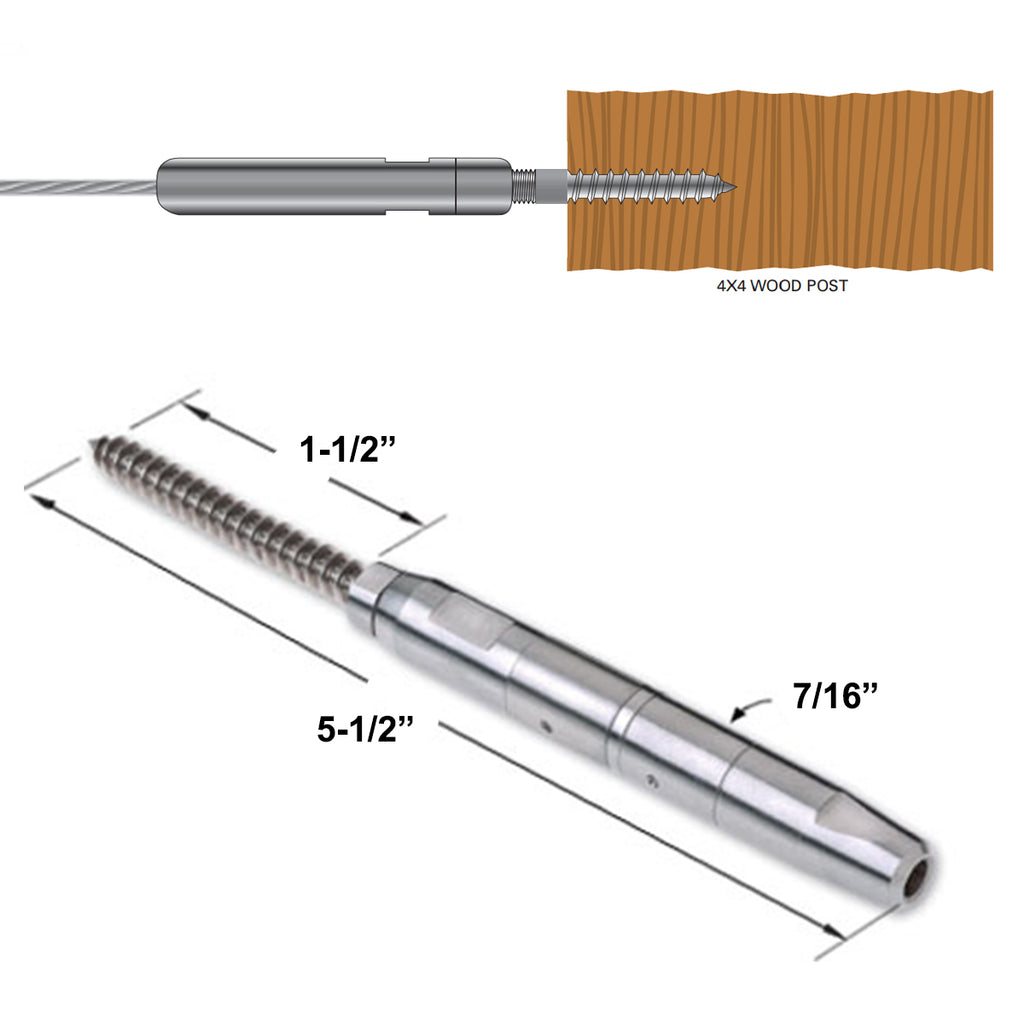

  • Swivel Body Length: 3-13/16" - Width: 7/16" (11mm)
  • Lag Screw Length: 1-1/2" x 1/4" - Overall Lag Screw Length: 3-1/4"
  • Swivel Body Internal Thread Length: 1-1/2"
  • Overall Length: Min 5-1/2" - Max 6-7/8"
  • Kit Includes: (1) Lag Screw - (1) Swivel Tensioner Body
  • At least one tensioner is required per each cable run

    Our marine grade 316 stainless steel cable and fittings are perfect for both residential and commercial projects.

    Note: We do not recommend this terminal for angled applications. Consult your local building code for specific requirements.
